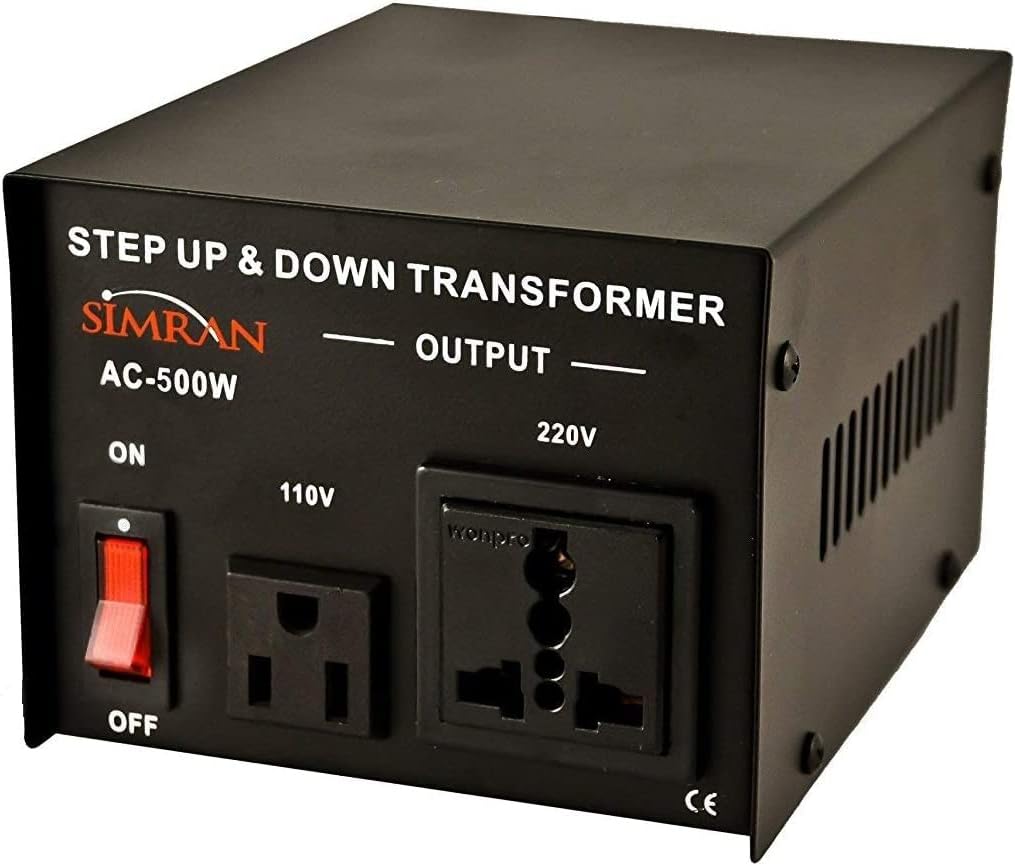

The Simran AC-500W Heavy-Duty Continuous Use Voltage Converter Transformer is a reliable 500-watt step-up and step-down converter. It efficiently converts voltage between 110V/120V and 220V/240V, making it ideal for use with a wide range of electronics, household appliances, and heavy-duty machinery. Its robust design supports continuous operation, ensuring stable power conversion for devices requiring up to 500 watts. The Simran AC-500W Heavy-Duty Continuous Use Voltage Converter Transformer is compatible with both 50Hz and 60Hz frequencies. It can convert single-phase 110V/120V to 220V/240V, or vice versa, stepping down from 220V/240V to 110V/120V. The unit features an ON/OFF switch with an indicator light and has two outlets on the front—one for each voltage level (110V/120V and 220V/240V). The 220V/240V outlet includes a USA patented universal socket that accommodates most plug types, excluding the large South African plug.
- Converts 110/120 Volts to 220/240 Volts OR converts 220/240 Volts to 110/120 Volts (a switch is located on the back of the unit).
- Compatible with 50Hz/60Hz.
- ON/OFF switch with indicator light.
- Two outlets on the front of the unit—one for each voltage (110V and 220V).
- One US Patented Universal Output Socket that accepts nearly all plug types (except the large South African plug).
- Insulated power cord is hardwired with a grounded USA plug, also suitable for use in Canada and Mexico.
- Comes with a grounded Schuko Plug Adapter for use in Europe and Asia.
- Fuse protected with two spare fuses included.
- CE Certified.
- For Indoor Use Only
- 30-Day Returns
- 2-Year Warranty
Ensure that the wattage and voltage of your appliance or equipment match the transformer’s specifications, and select the correct input voltage on the back of the transformer according to the country of use before connecting and turning it ON. Not adhering to these guidelines may lead to damage to both the transformer and the appliance.
Weight: 9 lbs
Dimension : 6" x 4.75" x 4"
Item Model Number: AC500
How to Choose the Right Voltage Converter
To select the appropriate voltage converter for your device, first identify the voltage (110 or 220 Volt AC) and wattage rating (watts or amps) listed on the back or bottom of the device or in its instruction manual. If only amps are provided without watts, calculate the watts by multiplying the input voltage by the amperage.
For example,
Volts (AC input) x Amps (current) = Watts (power)
110V x 0.5A = 55W
Keep in mind that some devices require a larger safety margin because they can have power surges. It is recommended not to use a converter beyond roughly 80% of its maximum wattage. It is safer to have a converter with a higher capacity than needed rather than one that is insufficient. Using a converter at full capacity for extended periods can cause it to fail.
Warning: Make sure the wattage and voltage of your appliance or equipment and the wattage of the transformer is suitable for each other, and the proper input voltage is selected on the back of the transformer according to the country of use before you connect the transformer and turn it ON. Failure to follow the instructions may result in damage to the transformer and the appliance.
Chart For Voltage, Frequency, and Electrical Outlets Used Worldwide by Country
- AC-500 Converter x 1
- 5A Spare Fuses x 2
- European Plug Adapter Type E/F x 1
