Simran THG-Series Heavy Duty Step Up & Step Down Voltage Transformer
Bidirectional Power Converter | 100W to 20,000W Max Capacity | Premium Coil
Power your electronics and appliances anywhere in the world with absolute confidence. The **Simran THG-Series** is a commercial-grade, bidirectional voltage transformer engineered with premium, durable coil windings for smooth, continuous electrical conversion. Perfect for operating 110V/120V North American electronics overseas, or safely running 220V/240V international equipment on standard domestic grids.
🚨 CRITICAL COMPATIBILITY WARNING: PLEASE READ BEFORE BUYING 🚨
NOT FOR STANDARD US 220V/240V CLOTHES DRYERS OR AC UNITS: This transformer **CANNOT** be used to power heavy-duty American household 240V appliances (such as standard US clothes dryers, stoves, central AC units, or water heaters) from a standard 120V house wall plug.
WHY: High-wattage American 240V appliances pull massive amounts of amperage. Stepping up a typical 15-Amp or 20-Amp wall circuit to pull 4,000W–5,000W will instantly trip your home's main electrical panel or blow out the unit.
INTENDED USE: This unit is strictly designed to bridge grid-to-appliance voltage gaps for international electronics/appliances (devices moving between the US and Europe, Asia, Africa, or South America).
Key Product Features & Specs
True Bidirectional Power: Easily switches between converting 110V/120V up to 220V/240V OR converting 220V/240V down to 110V/120V.
High Quality Winding: Built with high-quality premium coils for superior heat dissipation, efficiency, and heavy-duty performance.
Universal Frequency Support: Fully compatible with both 50Hz and 60Hz power supplies natively.
Shockproof Sockets: Engineered with heavy-duty shockproof receptacles. Features a grounded universal face outlet that accepts 2-prong or 3-prong plugs from almost any country.
Integrated Safety Fail-Safes: Models from 300W to 5000W feature an accessible built-in fuse protection system (includes 2 free spare fuses!). High-tier models feature heavy terminal connectors.
Certified Quality: Fully CE Approved and ISO Certified for peace-of-mind operation.

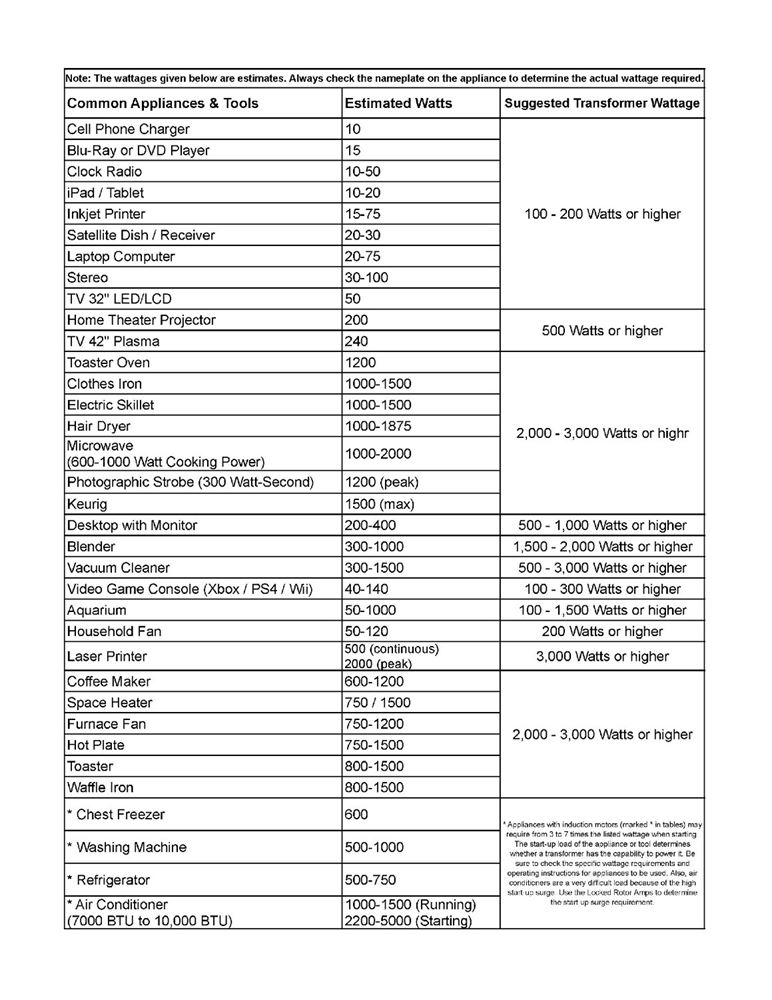

⚠️ Power Selection Guide: The 100% Margin Rule
To protect your gear and prevent a burned-out transformer, never load the converter beyond its safe running limits:
1. Standard Devices (TVs, Computers, Electronics): Select a model with a wattage capacity at least 100% higher (2X) than your appliance's listed power rating.
2. High-Surge Devices (Motors, Compressors, Heating Elements): Items like blenders, coffee makers, hair dryers, refrigerators, and power tools experience a massive surge when starting. You MUST select a model with at least a 3X to 4X wattage buffer.
*Note: For indoor use only. Manufacturer/Seller warranties do not cover units damaged by overloading.*
Capacity Variations & Models (Select Yours Above)
Please choose your specific capacity from the drop-down menu.

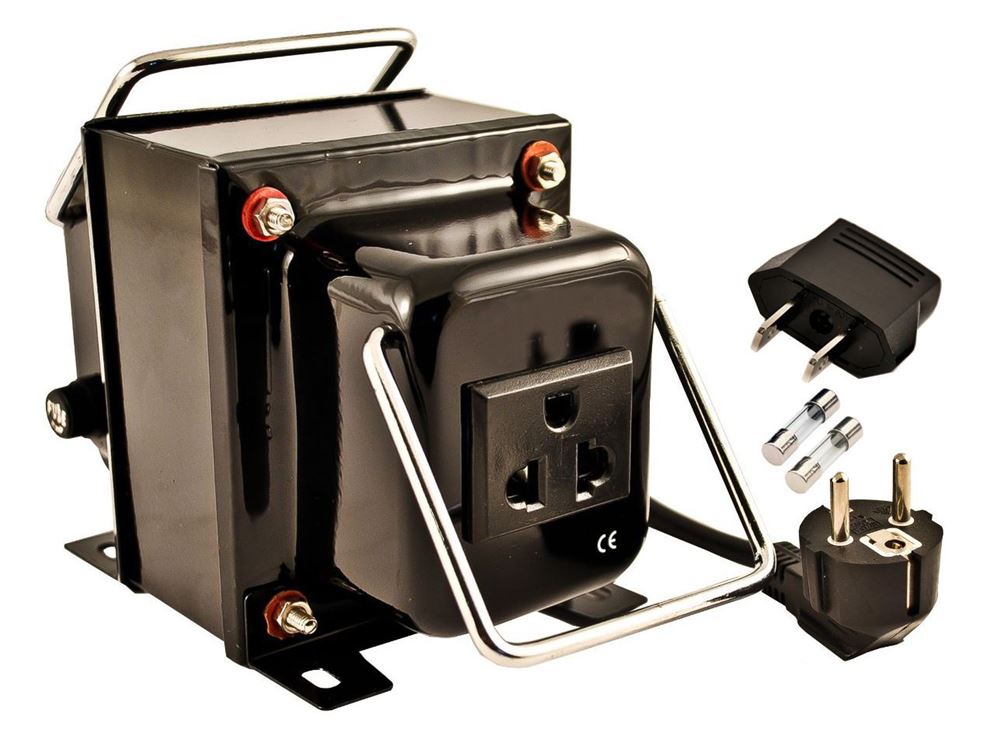

100W (THG-100) / 200W (THG-200) / 300W (THG-300): Best for small consumer electronics, laptops, phone chargers, and shaving kits.
500W (THG-500) / 750W (THG-750) / 1000W (THG-1000): Ideal for desktop PCs, game consoles, home theater components, and small electronics.
1500W (THG-1500) / 2000W (THG-2000) / 3000W (THG-3000): Great for everyday household countertop electronics and non-motorized kitchen gear.
5000W (THG-5000): Heavy-duty capacity for high-draw consumer devices.

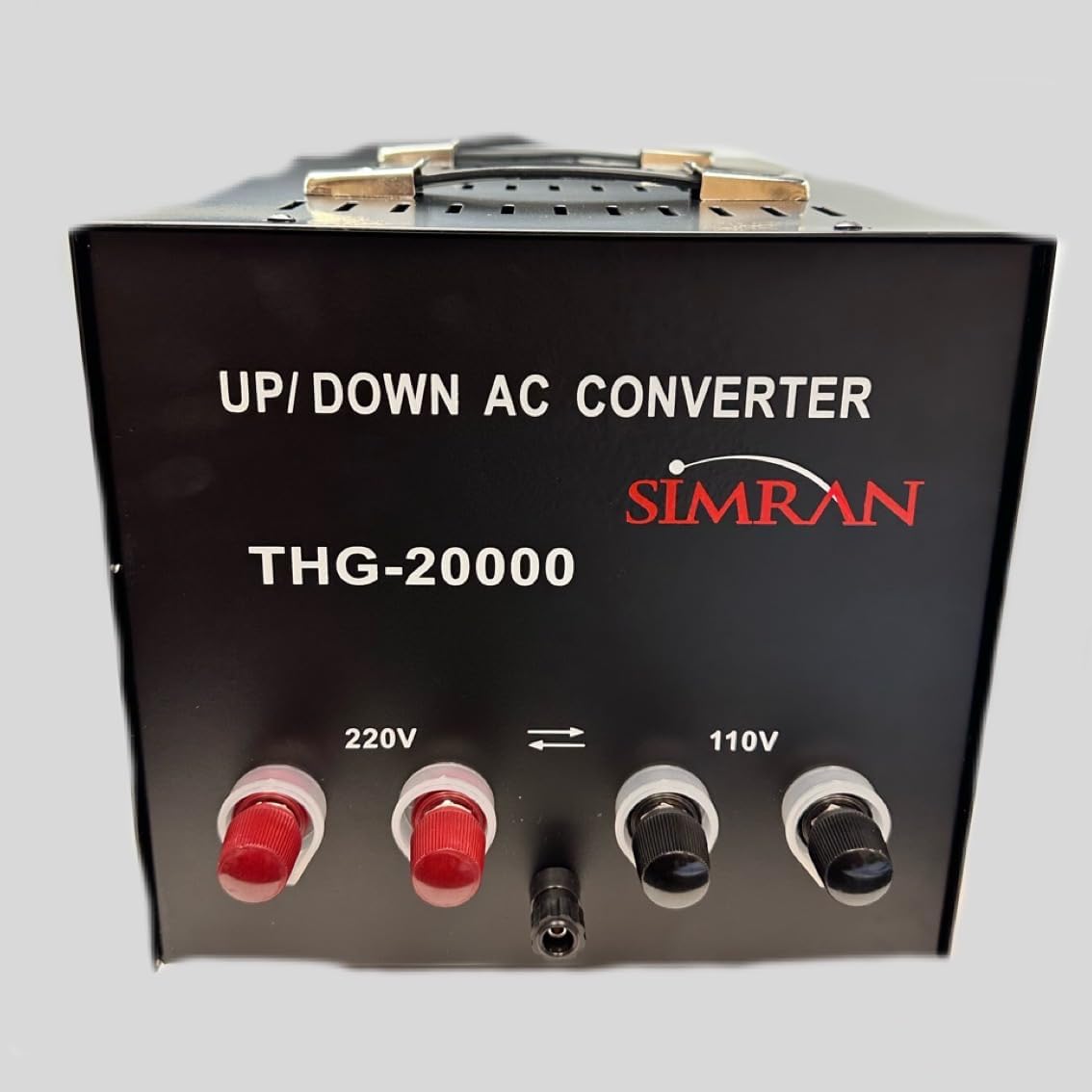

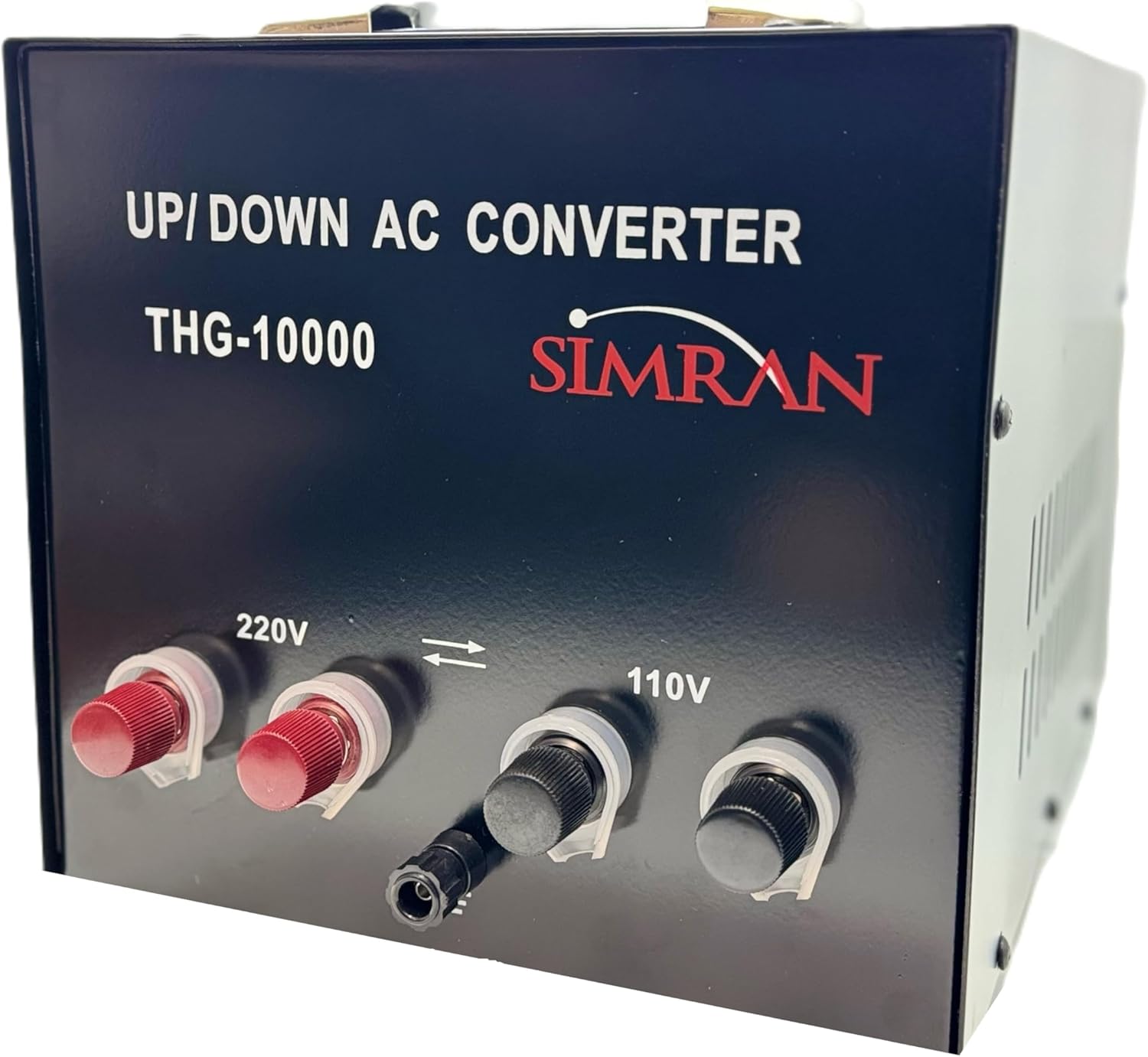

10000W (THG-10000) / 20000W (THG-20000): Max-tier industrial master units. ⚠️ *Weight scales up to 95+ lbs. Requires professional hardwiring by a certified electrician directly to terminal blocks. Standard wall plugs are not used.*
❓ Frequently Asked Questions (FAQ) — THG Series
Q: What is the difference between the Simran THG-Series and the AR-Series?
A: The THG-Series focuses purely on heavy-duty, bidirectional voltage transformation using premium copper coils for high durability, efficiency, and excellent heat dissipation. Unlike the AR-Series, the THG-Series does not feature an active automatic line stabilizer (AVR) panel meter on the front. It is designed to cleanly convert raw voltage up or down for steady power grids.
Q: Can I use a THG transformer to run an American 220V/240V electric dryer or air conditioner from a standard 120V household wall outlet?
A: NO. This unit is strictly NOT designed to power heavy-duty American household 240V appliances (such as US clothes dryers, stoves, ovens, or central/window air conditioners) using a standard 120V domestic wall outlet. Heavy US appliances pull a massive amount of amperage that will instantly overload a standard home wall circuit, causing your home's main electrical panel breakers to trip.
Q: How do I select the right wattage capacity for my device?
A: Check the specification label on your appliance to find its wattage (W) or Amps (A).
• Standard Electronics (TVs, Laptops, Stereos): Choose a THG model with a capacity at least 100% higher (2X) than your appliance's wattage.
• High-Surge Appliances (Blenders, Coffee Makers, Hair Dryers, Fridges, Tools): Devices with motors or heating elements experience massive spikes when turning on. You MUST choose a capacity at least THREE to FOUR TIMES (3X to 4X) your appliance's listed wattage to operate safely.
Q: Does this unit convert cycles or frequency (50Hz vs 60Hz)?
A: No. The THG-series converts the voltage (e.g., 110V to 220V) and operates safely on both 50Hz and 60Hz grids, but it does not alter the cycle frequency itself. Most modern electronics auto-detect and handle both frequencies seamlessly, but check your appliance's label to ensure it can handle the alternative frequency cycles.
Q: What should I do before turning the unit on for the first time?
A: You must check the Input Voltage Selector Switch on the back of the transformer. Set this switch to match the voltage coming out of your wall outlet (e.g., if you are in the United States, slide it to 110V before plugging it into the wall). Failing to set this switch correctly will instantly blow the safety fuse.
Q: What type of plugs can I connect to the front sockets?
A: The THG-Series features a heavy-duty grounded universal face outlet designed to comfortably accept 2-prong or 3-prong plugs from almost any country worldwide, as well as a standard US outlet.
Q: What happens if I accidentally overload the transformer?
A: For models up to 5000W, the unit features an accessible safety fuse system that will automatically pop to cut power and protect your expensive appliance. Every order includes 2 free replacement fuses inside the box. High-tier industrial units (10,000W+) feature heavy-duty terminal block connections with integrated circuit safeguards.
Q: Does my model require professional installation?
A: Models from 100W up to 5000W are plug-and-play and come standard with attached cords or plug adapters. Industrial models rated at 10000W and 20000W do not use standard wall plugs; they feature direct terminal blocks and must be professionally hardwired into your electrical setup by a licensed electrician.
📦 30-Day Hassle-Free Return Policy
We want you to be completely satisfied with your purchase! We accept returns within 30 days of item delivery under the following strict terms and conditions:
1. Return Requirements by Condition
• Unopened & Unused Items: Full refund minus any original shipping adjustments. The item must be returned in its original, undamaged manufacturer box with all included accessories, manuals, and protective packaging inserts intact.
• Opened / Tested Items: If the unit has been opened and plugged in, it must be returned perfectly clean, free of scratches, and repackaged exactly as it arrived. A restocking fee may apply if the original box or retail packaging is destroyed or missing.
• ⚠️ Hardwired / Installed Units (THG 10kW–20kW & AR 8kW–20kW): Due to strict safety regulations and installation wear, we cannot accept returns on heavy-duty industrial models once they have been hardwired or installed by an electrician, unless the unit is verified to have a manufacturing defect.
2. The Buyer Error & Return Shipping Rules
• Wrong Wattage Selection / Appliance Overloads: If you purchased the wrong wattage or accidentally overloaded the unit by bypassing our 100% Efficiency Buffer Rule (resulting in a blown fuse or tripped breaker), you are responsible for the return shipping costs.

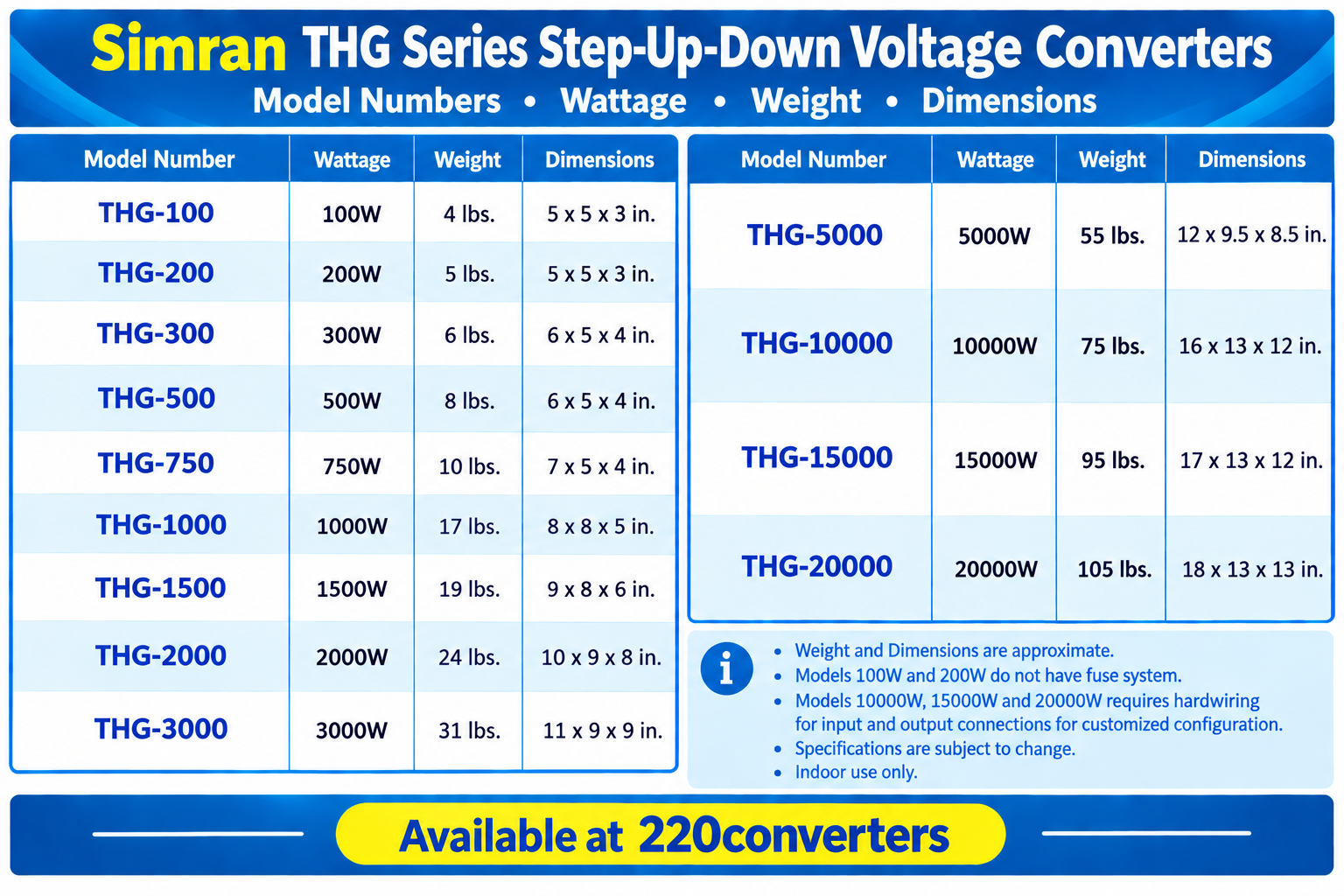

• Overage Shipping Notice: Please be aware that the high-wattage versions of these transformers are extremely heavy (ranging from 30 lbs to over 105 lbs). Return shipping via standard couriers can be very expensive. Please double-check your appliance's wattage requirements before opening or installing your unit to avoid high return shipping fees.
3. Damaged or Defective Items
• In the rare event that your item arrives physically damaged from transit or exhibits a manufacturing defect out of the box, we will provide a 100% free prepaid return shipping label and issue a full refund or immediate replacement. Please contact us within 48 hours of delivery with photos of the issue so we can fast-track your request!
SELLER DISCLAIMER & RETURN POLICY — PLEASE READ BEFORE BUYING
• BUYER RESPONSIBILITY: It is the buyer's sole responsibility to verify their device's voltage and wattage requirements BEFORE purchasing or plugging it into this converter.
• WARRANTY VOID ON OVERLOAD: Returns will NOT be accepted for units that have been burned out, blown, or damaged due to buyer overloading or improper use with incompatible high-wattage items.
• NO LIABILITY: The seller is not liable for any damage caused to your personal electronic devices due to improper voltage conversion, wattage overloading, or incorrect usage.
By purchasing this item, you acknowledge that you have verified your device is single-voltage (110V/120V) and consumes LESS than 50 Watts of power.
